Axes: travel
X-axis
350 mm
[ { "name-of-section": "Axes: travels", "string-1": "X-axis @ 350 mm", "string-2": "Y-axis @ 220 mm", "string-3": "Z-axis @ 250 mm", "string-4": "B-axis @ -110° to +110° option -180° to +110°", "string-5": "C-axis @ 360° endless" }, { "name-of-section": "Axes: Dynamics", "string-1": "V^max^ X, Y, Z @ 30 m/min", "string-2": "a^max^ X, Y, Z @ 10 m/s²", "string-3": "v^max^ C @ 200 1/min", "string-4": "full load torque B @ 648 Nm", "string-5": "constant torque B @ 360 Nm", "string-6": "Holding torque B-axis (clamped) @ 300 Nm", "string-7": "full load torque C @ 135 Nm", "string-9": "Continuous torque C @ 75 Nm" }, { "name-of-section": "Automatic tool changer HSK 25", "string-1": "101x, 209x @ (*)", "string-2": "Tool changing time @ < 3 s", "string-3": "Chip to chip time @ < 4,5 s", "string-4": "Max. Tool diameter for automatic change @ 70 mm (each 2nd tool rack position not in use)", "string-5": "Max. Tool length for automatic changer incl. tool holder @ 150 mm" }, { "name-of-section": "Automatic tool changer HSK 40", "string-1": "90x, 186x @ (*)", "string-2": "Tool changing time @ < 3 s", "string-3": "Chip to chip time @ < 4,5 s", "string-4": "Max. Tool diameter for automatic change @ 70 mm (each 2nd tool rack position not in use)", "string-5": "Max. Tool length for automatic changer incl. tool holder @ 150 mm" }, { "name-of-section": "Numeric control", "string-1": "Heidenhain TNC640 @ (*)" }, { "name-of-section": "Spindle HSK 25", "string-1": "n^max^ @ 30,000 1/min", "string-2": "n^max^ (optional) @ 50,000 1/min", "string-3": "Torque^max^ (S1) @ 1.6 Nm", "string-4": "Power^max^ (S1) @ 6 kW" }, { "name-of-section": "Spindle HSK 40", "string-1": "n^max^ @ 42,000 1/min", "string-2": "Torque^max^ (S1) @ 5.9 Nm", "string-3": "Power^max^ (S1) @ 15 kW" }, { "name-of-section": "Spindle HSK 32", "string-1": "n^max^ @ 40,000 1/min", "string-2": "Torque^max^ (S1) @ 2.1 Nm", "string-3": "Power^max^ (S1) @ 6.3 kW" }, { "name-of-section": "Clamping system on 5th axis", "string-1": "EROWA Power Chuck P @ (*)", "string-2": "System 3R Magnum @ (*)" } ]
KERN
KERN
With its new design and many further developments, the second generation of the Kern Micro sets new standards in flexibility, precision and productivity.

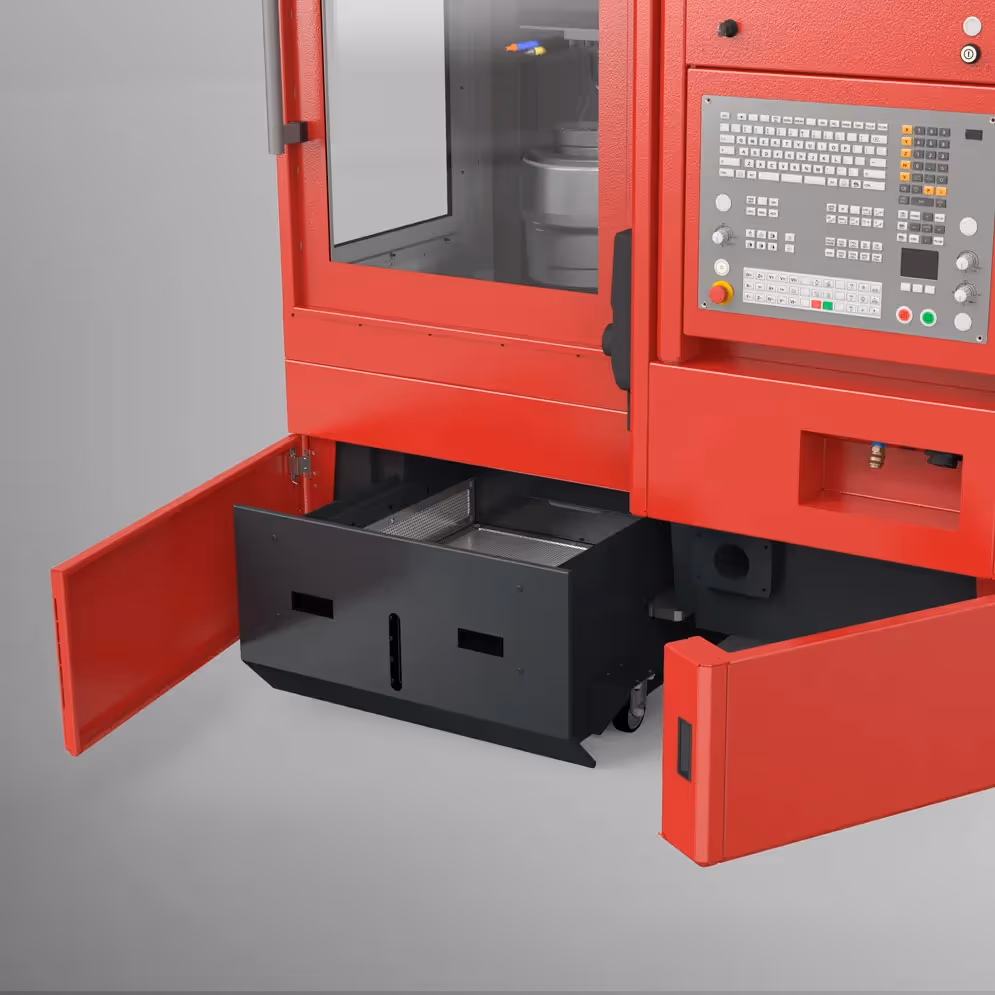

Ultra-compact, flexible and application-oriented, the Kern Micro Vario generates the decisive competitive advantage - permanently and efficiently.
Thanks to the sophisticated machine design, the unique Kern temperature management and high-quality components, the Kern Micro Vario reliably delivers the proverbial Kern precision and repeat accuracy.
The positioning accuracy of the Kern machines according to VDI/DGQ 3441 is proverbial. Each individual machine is laser-measured and guarantees that the desired positions are approached with μ precision - from the first to the 10,000th workpiece in unmanned series production.
Position deviation Kern Micro: Pa = ± 0.5 μm
Position deviation Kern Evo: Pa = ± 0.5 μm
Position deviation Kern Pyramid Nano: Pa = ± 0.3 μm
When designing our machine, we take into account all aspects of automated serial production - from automatic tool change to ergonomics at all access points.
For fast and safe tool changes during the series production run, all Kern machines have the option of setting up the tool storage during machining. A large number of tool positions enables long autonomous run times, the tools are optimally and clearly arranged. The quick-change system of the Kern Micro is patented.
The optimum accessibility and clamping height of each Kern machine ensure ergonomic working. The work area is bright and easy to see and accessible at all times through a main door, even when the machine is automated.
The product design of the Kern machines takes into account optimised axis kinematics in order to minimise the traverse paths, especially for small 5-axis parts. The most economical linear axes possible and generous swivel and rotary axes, as well as the optimised spatial arrangement of the axes, make it possible to produce even complicated free-form geometries with the shortest possible traverse paths in one clamping.
The symmetrical portal construction of the Kern machines with a machine stand made of Kern-Armorith (mineral casting, reinforced with heavy steel struts) suppresses practically all vibrations that occur due to its weight and its patented material.
Kern Microtechnik has developed a high-precision temperature management system for its machining centres that is optimally matched to the requirements of each individual Kern machine.
With the help of our own software algorithms, the heat is dissipated in a controlled manner at the points where it is generated. As a result, the Kern machines achieve a very high temperature stability without burdening the hall air conditioning.
By drastically reducing the sources of thermal errors, this intelligent control of the entire machine periphery, including the cooling lubricants, forms one of the foundations for our Kern potential.
Kern CNC machining centres have standardised interfaces for all common automation systems. Due to the possibility of integrating a KERN into any existing production system, our machines offer the highest flexibility and safety for your automation task.
The automation of a Kern machine for tools and workpieces does not affect your service work in any way, the main door of the machine room remains accessible throughout regardless.
With the new integrated workpiece changer of the Kern Micro, you too have an easy way to enter the world of automation.
To increase your production capacities, Kern Microtechnik not "only" offers its machines, but also the complete production process for
your parts on request.
Can we also support you in the implementation of a part? Contact our specialists
and discover the Kern potential too!
As an authorised training partner of Heidenhain, we offer Heidenhain courses for beginners, users and professionals. In addition, training courses on the operation of Kern machines as well as technical and customer-specific training courses can also be booked.
